Taurus Series spot light
Product Details
Features:
ØFixed system with steel springs
ØVersions with perimeter frame
ØBetter heat dissipation with die-casting Aluminum material
ØReflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort
ØGeneral lighting versions available with multiple anti-glare cover
Ø Supported dimming system: Triac/ 0-10V/ DALI/ Blutooth/ Zigbee
ØWiring options: On-Off - DALI - with inverter for emergency lighting
ØOutput luminous efficacy: >80lm/w
ØWarranty: 5 years
ØLifespan: 50000hrs
| Model No. | ES4025 | ES4026 | ES4027 |
| Power | 2*7W | 2*12w | 2*24w |
| Power Factor | 0.5 | 0.5 | 0.9 |

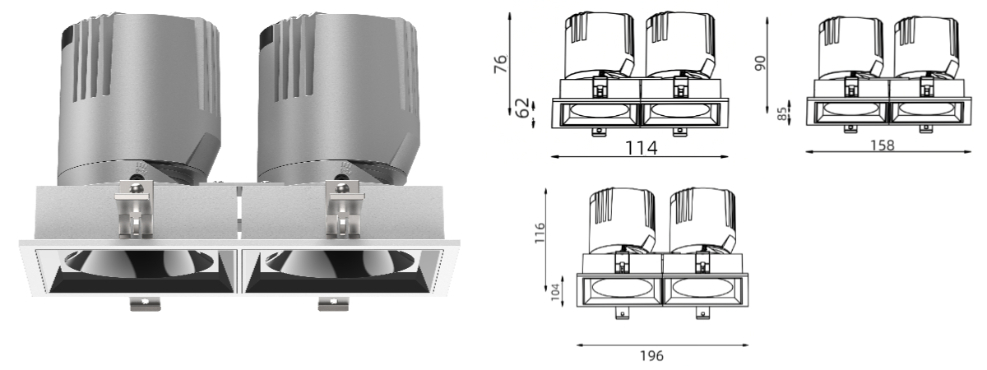

| Dimension(mm) | 114*62*76 | 158*85*90 | 196*116*92 |
| Cutout Size(mm) | 105*55 | 148*75 | 190*95 |
| Beam Angle | 15°/24°/36°/55° | ||
| Optical Solution | Lens | ||
| Driver | LIFUD | ||
| Input Voltage | AC 220-240V | ||
| CRI | 90 | ||
| Shape | Square | ||
| CCT | 3000/4000/5000k | ||
| IP Rating | 44 | ||
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
