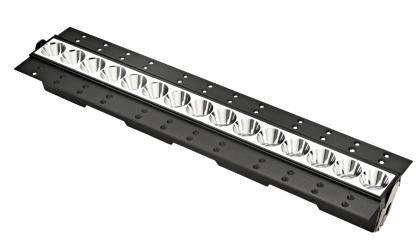

Flush mount installation in false ceilings with 1 to 25 mm thickness

Fixing system with steel springs

Versions with perimeter flap (Frame)

Dissipator in painted die-cast aluminum

Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort

General lighting versions available with white reflector

Wiring options: On-Off - DALI - with inverter for emergency lighting

The minimum installation space dimensions are listed in the instruction sheet

IP20

IP54 on the visible body of the mount after installation (Frame versions

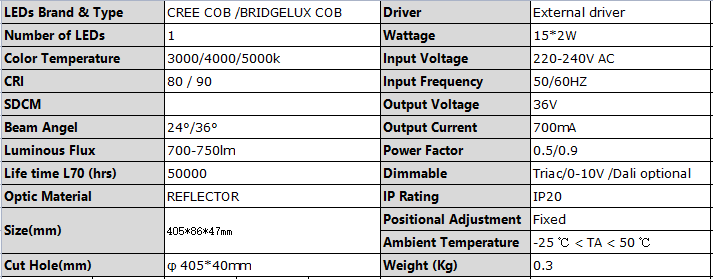

Product Specs:

Installation:

Things to know：

●  Due to the different Voltage of lighting fixture, please select the appropriate. LED driver based upon the technical specification.

●  Installation must be done by professional electrician.

●  Please ensure the power has been cut off before installation, in order toprevent the electric shock, make sure the power supply that can't be resumedby anybody before the job done.

●  This product should be installed together with fuse..The maintenance should be done by the professional.

●  The defective ballast could not be treated as the normal rubbish and should bereturned and make use of the normal parts.

●  Please consult the authorized department or retailers for returned advice.

Warranty:

This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment or installation. Should this product fail during the warranty period it will be replaced free of charge, subject to the correct installation of the original product and subsequent return of the faulty unit. Fullamps does not accept responsibility for any installation costs associated with the replacement of this product and Fullamps reserves the right to alter specifications without prior notice.
